Ball Valve Klinger Ballostar KHE

Ball Valve Klinger Ballostar® KHE - The Ballostar KHE ball valve offers modular selectable system components (operating stem and sealing elements). A construction kit that has already successfully proved itself at the Ballostar KHA valve. Thus the split body KHE valves is prepared for a wide range of operating conditions.
Brand :

Klinger

Category :

Ball Valve

Share :

Distributor Ball Valve Klinger Ballostar KHE

Klinger Ballostar® Khe Ball Valves

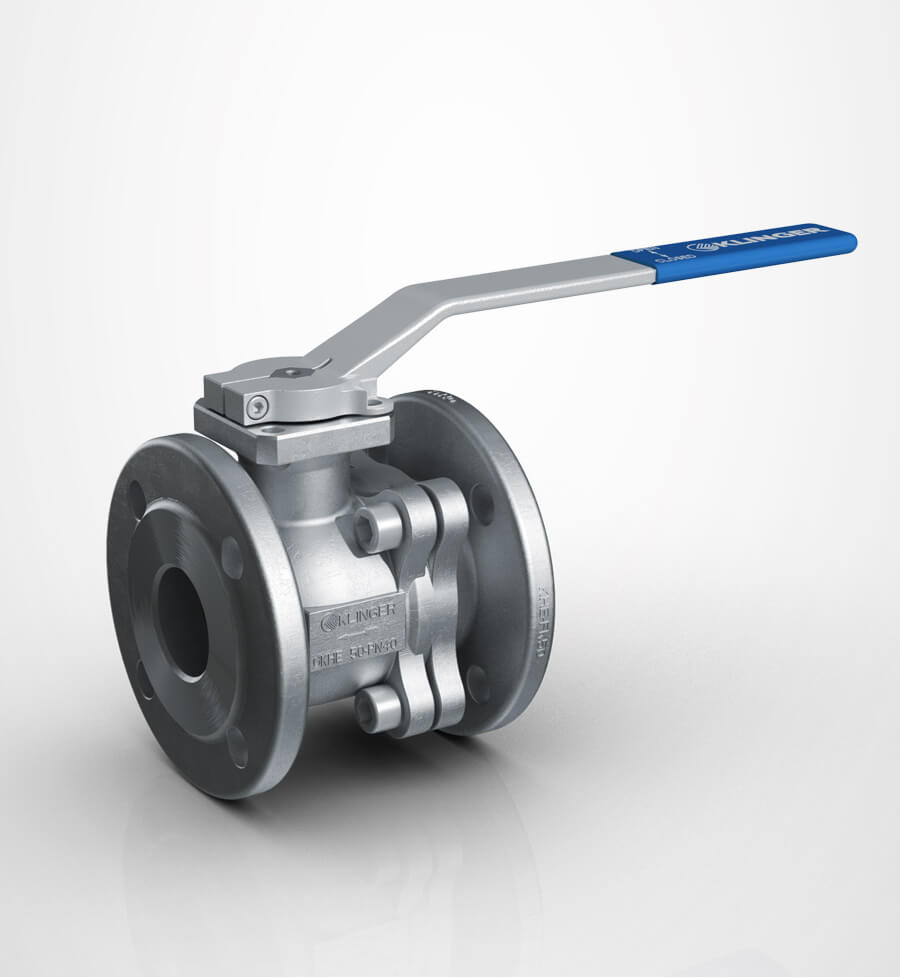

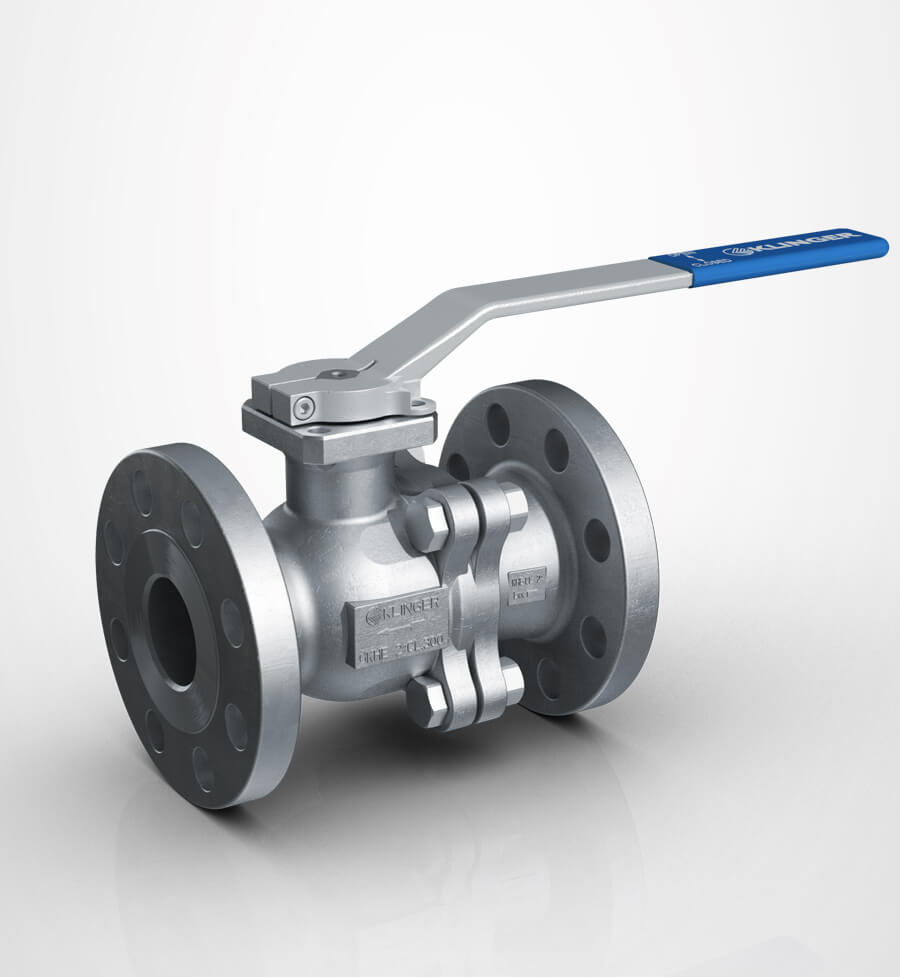

KHE-FK Short flange design KHE-FL Long flange design KHE-CL Flange design (ASME)
klinger ball valve KHE-FK Klinger Ball valve KHE-FL Klinger Ball Valve KHE-CL

Product Advantages Ball Valves

  • Maintenance-free
  • Supports pressurization on both sides
  • Ball with cylindrical full bore
  • Sealing in accordance with EN 12266-1 – leakage rate A
  • Modular selection of system components
  • Fire Safe
  • Antistatic design in accordance with ISO 7121 / EN 1983
  • Subsequent automation possible at any time (top flange in accordance with EN ISO 5211)
  • Optimal spare parts availability (as a result of common parts with Ballostar® KHA)

Special Types KHE Ball Valves

  • Metal seat for abrasive media
  • Operating stem sealed by O-rings
  • Operating stem extension
  • Oxygen version (oil- and grease-free)
  • Gas version



Type

Special Types KHE Ball Valves
- Metal seat for abrasive media
- Operating stem sealed by O-rings
- Operating stem extension
- Oxygen version (oil- and grease-free)
- Gas version
